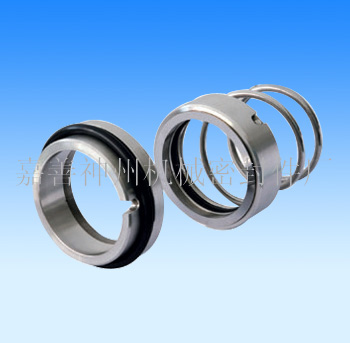

Products Name:Model M3N mechanical seal

Products Details:Single ended / unbalanced / conical spring / fixed rotation / EN12756 (DIN24960) standard, M3N series mechanical seal, simple structure, wide range of application, good reliability. Applicable to clean water pumps, sewage pumps, submersible pumps and chemical process pumps.

Operating parameters:
Specification: 6 ~ 80mm, pressure = 1.0Mpa, temperature: -20 to 180 DEG C, line speed: less than 15m/s, axial momentum: + 1.0mm

Material combination:
Sealing face: graphite, silicon carbide, tungsten carbide, alumina, stainless steel, auxiliary seals: NBR, fluorine rubber, ethylene propylene rubber and PTFE, metal components: stainless steel
