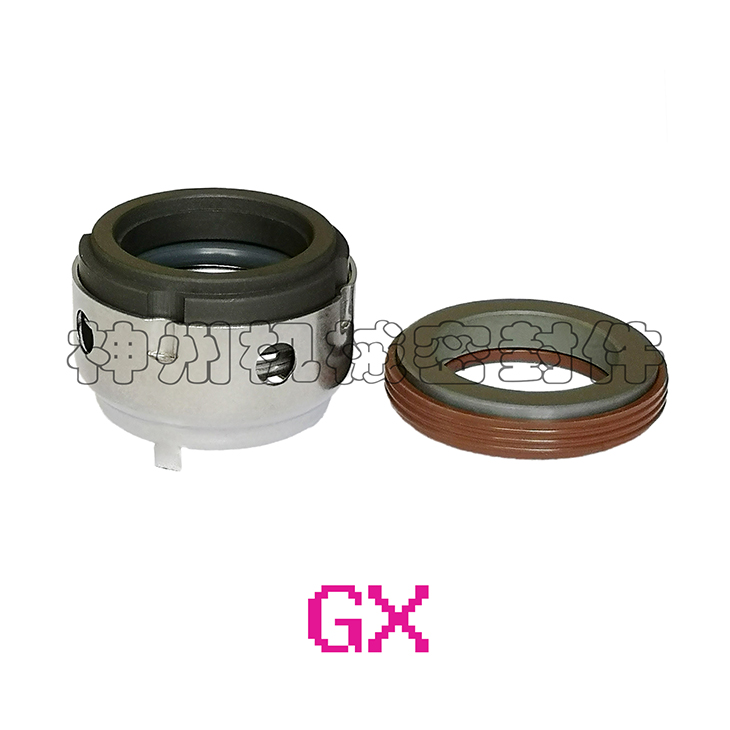

Products Name:GB Gx type mechanical seal

Products Details:Gx type is built-in, single spring, sleeve drive, balance type. The seal is a typical mechanical seal for large springs. It is a widely used standard balanced mechanical seal, which allows materials and end face combinations to meet a wide range of requirements.

Operating parameters:
Pressure: 0 ~ 0.8Mpa
Temperature: 0 ~ 80 DEG C
Maximum speed: 3000r/min
Axle diameter: 25~100
Medium: 1Gx oil, gasoline, 2Gx, weak acid, weak base, 3Gx, a small amount of particles of impurities

Material combination:

Name	Code
Cemented carbide (YG6) - graphite impregnated phenolic resin	1Gx
Carbide (YG6) graphite impregnated furan resin	2Gx
Cemented carbide (YG6) - cemented carbide (YG6)	3Gx
